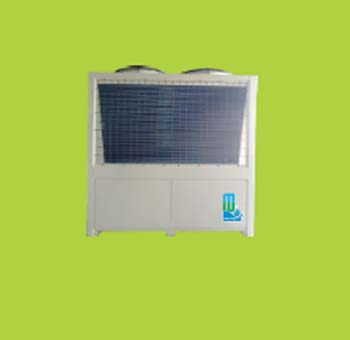

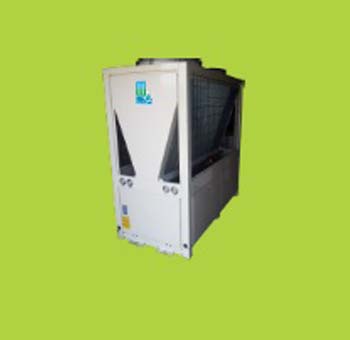

Water Heat Pump

Features


  • An advanced 100% pure titanium metal water heat exchanger is integrated, which can resist the erosion from chlorine.
  • Performance for extra long life.
  • Reversing Cycle provides Heating the pool in Winter and Cooling the pool in winter.
  • Ultra Quiet and Efficient operation.
  • LCD control board displays an intuitive, menu-driven readout with easy to follow, full word messages.
  • AutoSet (time clock over-ride) feature monitors water temperature and turns the water circulation pump on and off as needed to maintain desired pool termperatures
  • Automatic defrost feature senses refrigerant temperature and prevents UltraTemp from freezing, allowing the heat pump to operate at even lower temperatures.
Model no. DEWDROP_PHP/9 DEWDROP_PHP/15 DEWDROP_PHP/24 DEWDROP_PHP/45 DEWDROP_PHP/75
Heating Capacity kW 13.5 21.3 35.5 66 110
TRh 4 6 10 19 31
POWER CONSUMPTION kW 3.12 4.30 7.30 14.80 23.30
COP with ?T of 30 °C. coph 4.33 4.95 4.86 4.46 4.72
Rated Water Pump Power kW 0.8 1.5 2.0 3.0 4.0
Overall Cop coph 3.5 3.7 3.8 3.7 4.0
Maximum Water Temp 45 45 45 45 45 45
Compressor type scroll scroll scroll scroll scroll 1+1 scroll
Refirgerant R407C R407C R407C R407C R407C
Compressor type scroll scroll scroll scroll scroll 1+1 scroll
Refirgerant R407C R407C R407C R407C R407C
Fan quantity
Power
1 1 2 2 2
input/W 180 260 320*2 550*2 1100*2
Noise In Meter Destance dB =54dB(A) =54dB(A) =54dB(A) =59dB(A) =62dB(A)
